1.00mm pitch wire to board connector single dual row 2 to 20 pin for Laptop
5. intruduction
Wire to Board connector 1.00mm pitch housing/wafer/terminal A1001 series
| Specifications | Pitch Size | 1.0mm |
| Current rating | 1A AC, DC |
| Voltage rating | 50V AC, DC |
| Withstanding voltage | 500V AC/minute |
| Contact resistance | 20 mΩ Max |
| Insrlation resistance | 100 mΩ Min |
| Temperature range: | -25℃ ~ +85℃ |
| Rated Current (Max.) And Applicable Wire | AWG#28 | 1A | AC/DC |
| Responsive Time | AWG#30 | 1A | AC/DC |
| Panel Life | AWG#32 | 0.5A | AC/DC |
| Mechanical Performance |
| Test Description | Procedure | Requirement |
| Actuator Insertion & Withdrawal Force | Insert and withdraw connectors at the speed rate of 25±3mm / minute. | Refer to paragraph 7 |
| Crimping Pull Out Force | Fix the crimped terminal, apply axial pull out force on the wire at the speed rat of 25±3mm / minute.(Based upon JIS C5402 6.8) | AWG#28 | 1.0kgf (Min) |
| AWG#30 | 0.8kgf (Min) |
| AWG#32 | 0.5kgf (Min) |
| Terminal Insertion Force. | Insert the crimped terminal into the housing. | 0.50kgf (Max.) |
| Terminal/Housing Retention Force. | Apply axial pull out force at the speed rate of 25±3mm / minute on the terminal assembled in the housing. | 0.70kgf (Min.) |
| Pin Retention Force | Apply axial push force at the speed rate of 25±3mm / minute | 0.50kgf (Min.) |
| | | | | | | | |
Actuator Insertion/Withdrawal Force
Description:

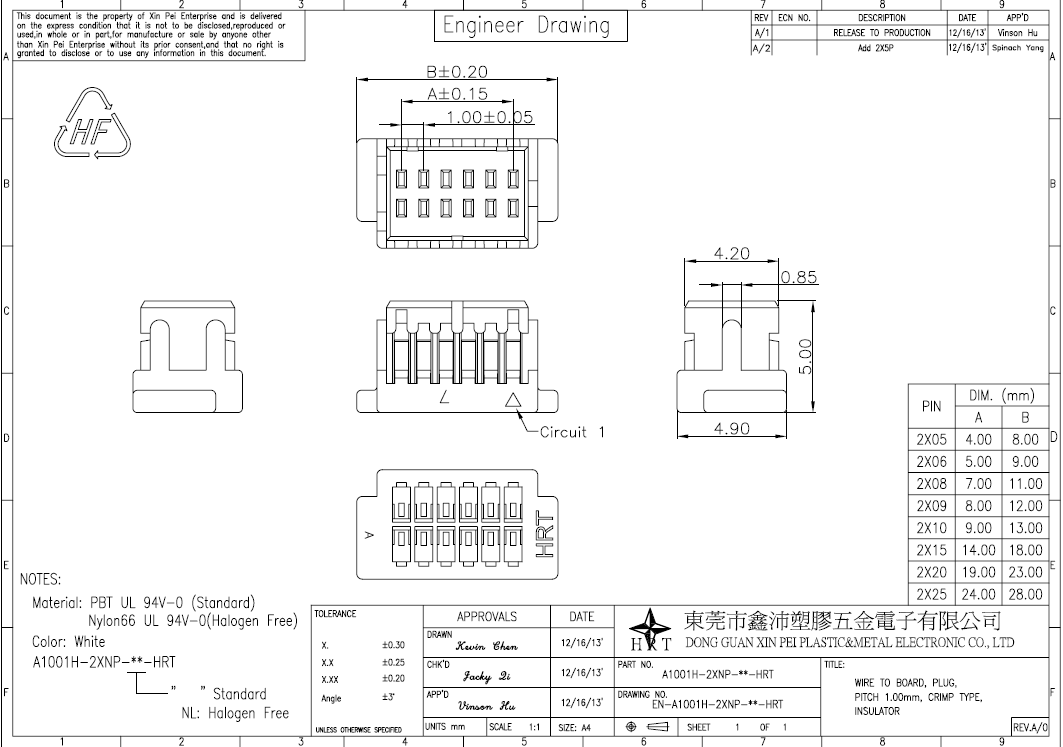

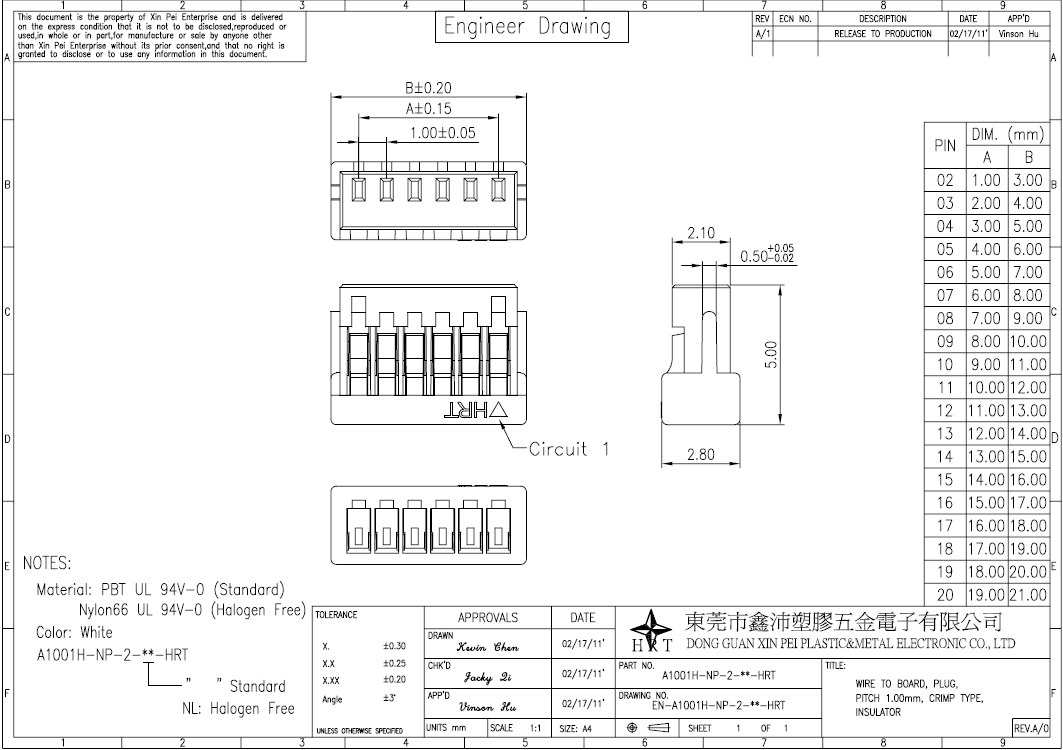

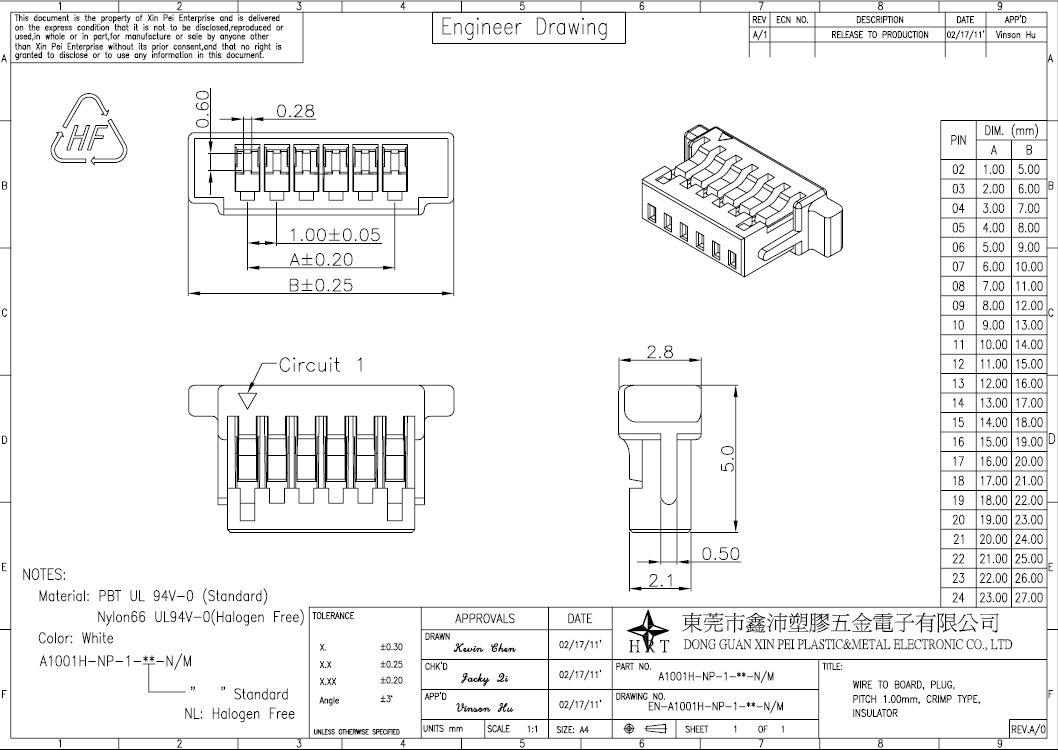

1, A1001series is divided into A1001H-NP-1,(single row housing), A1001H-2*NP, (dual row housing),A1001H-NP-2,(single row without protrusions housing),Terminal:A1001-TPE-A(used in A1001 series housings).
2, Housing used two kinds of raw materials: PBT and PA66(halogen free raw) , Fire-protection rating are both UL 94-V0.Halogen Free products are called:A1001H-NP-1-NL. Minimum packing quantity is 1000pcs/bag.
3. Single row housing from 2pins to 20pins,This product we have two molds and we can produce 50—100KPCS of this product every day. Dual row housing we have 2*15P,2*20P,2*25P three kinds ,The daily production capacity is 30 to 50 KPCS.
4. Terminals are stamped by Phosphor Broze, E-Stamping before Tin-plated or Gold-flash ,Tin-plated we calling A1001-TPe-A, Gold-plated we calling A1001-GPe-A,Minimum packing quantity is 20,000pcs/Reel. The daily production capacity is 300 to 400 KPCS.
5. Terminals' wire range :AWG #28--#32,insulation OD is 0.80mm(Max),The thickness of gold-plating can be customer repuirements.Gold-flash:Au-0.8u, Ni: 20—40u, Gold-plated 3u: Au-3u,Ni:20-40u.
Applications:
This product is mainly used for computer, laptop, LCD screen, TV SET and so on. Mainly used for signal transmission.
