1, The specification of this product
From the following table to choose the right parts from us.
| Basic size information |
| Suitable terminals | A2001T series |
| Application | Signal, wire-to-board |
| Pitch | 2.00mm |
| Color | White |
| Row | Single |
| Lock to mating part | Without |
| Circuits | 2 to 18 pins(position) |
| Gender | Receptacle |
| Terminal materials | Phosphor bronze material, tin-plated or gold-flash finish |
| |
| Electrical properties |
| Current Rating | 2.0 A AC, DC |
| Voltage Rating | 100 V AC, DC |
| Contact Resistance | 10 mΩ Max |
| Insulation Resistance | 1000 MΩ min |
| Withstanding Voltage | 800V AC/minute |
| |
| Mechanical properties |
| Temperature range | -25℃ to 85 ℃ |
| Other information please kindly check the following picture. |

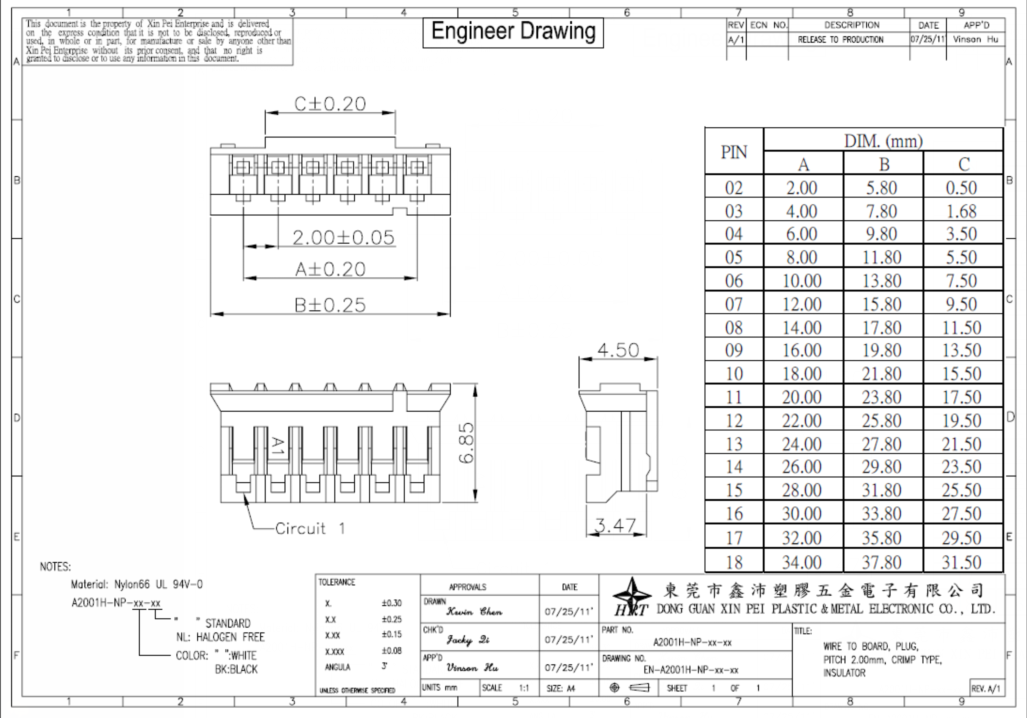

2, Related drawing and report
Folllowing pictures are out testing report and exact engineering drawing for your information, please kindly check it, wish it can help you to get what you really need.
Mechanical Performance
| Test Description | Procedure | Requirement |
| 5-1 | Actuator Insertion & Withdrawal Force | Insert and withdraw connectors at the speed rate of 25±3mm / minute. | Refer to paragraph 7-2 |
| 5-2 | Crimping Pull Out Force | Fix the crimped terminal, apply axial pull out force on the wire at the speed rat of 25±3mm / minute.(Based upon JIS C5402 6.8) | AWG#24 | 3.0kgf (Min) |
| AWG#26 | 2.0kgf (Min) |
| AWG#28 | 1.0kgf (Min) |
| AWG#30 | 0.8kgf (Min) |
| 5-3 | Terminal Insertion Force. | Insert the crimped terminal into the housing. | 1.00kgf (Max.) |
| 5-4 | Terminal/Housing Retention Force. | Apply axial pull out force at the speed rate of 25±3mm / minute on the terminal assembled in the housing. | 1.50kgf (Min.) |
| 5-5 | Pin Retention Force | Apply axial push force at the speed rate of 25±3mm / minute | 1.00kgf (Min.) |
| 5-6 | Latch Yield Strength | Mate connectors and pull apart until both latches break at the speed rate of 25±3mm / minute | 3.00kgf (Min.) |
| 5-7 | Durability | When mated up to 50 cycles repeatedly by the rate of 10 cycle per minute. | Contact Resistance 20mΩ (Max.) |
| 5-8 | Vibration | Amplitude: 1.5mm P-P Sweep time: 10-55-10 Hz in 1 minute Duration: 2 hours in each X.Y.Z. axes. (Based upon MIL-STD-202 Method 201A) | Appearance No Damage. Contact Resistance 20mΩ (Max.) Discontinuity 1 μsec.(Max.) |
| 5-9 | Physical Shock | 490m/s²｛50G｝,3 strokes in each X.Y.Z. axes. (Based upon JIS C0041/MIL-STD-202 Method 213B Cond. A) |
3, Product's Features
This is a thin, low-profile 2.0mm pitch connector 8.0mm in height after mounting and 4.5mm in width. It is designed to meet the demand for high-density connection of internal wires to printed circuit boards. It is
compact, highly reliable and low in cost.
• Reliable contact
• Fully shrouded header
• Printed circuit board retention mechanism
• Surface mount model (SMT)
4, Delivery way
We have good cooperation with world famouse delivery company, and the can offer us VIP service and favorable price. It's sure that your purchasement can be cost down via our strength.
