2.50mm pitch PA66 housing usb circuit board connector wire to board connector A2540HNP
1, Detailed specification of product
Wish the below table can help you to know our product clearly, then you will get the right
part from us.
| Detailed information |
| |
| Basic size information | Circuits | From 2pins to 15pins |
| Mating lock | Without |
| Wire range | AWG22# to 28# |
| Terminal materials | Brass |
| Finish terminal | Tin-plated |
| Suitable Wafer | A2540 series wafer |
| Matched Terminals | A2540T series |
| |
| Electrical properties | Current Rating | 3A AC, DC |
| Voltage Rating | 250V AC, DC |
| Contact Resistance | 10mΩ Max |
| Insulation Resistance | 500mΩ min |
| Withstanding Voltage | 800V AC/minute |
| |
| Mechanical properties | Temperature range | -25℃ to 85 ℃ |
| Other information please kindly check the following picture. |

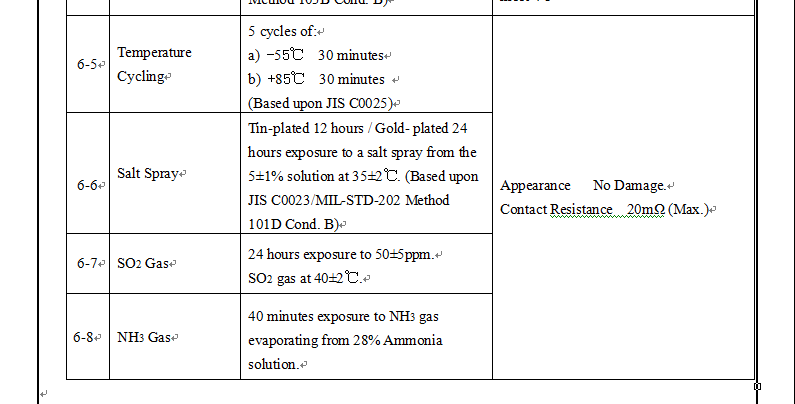

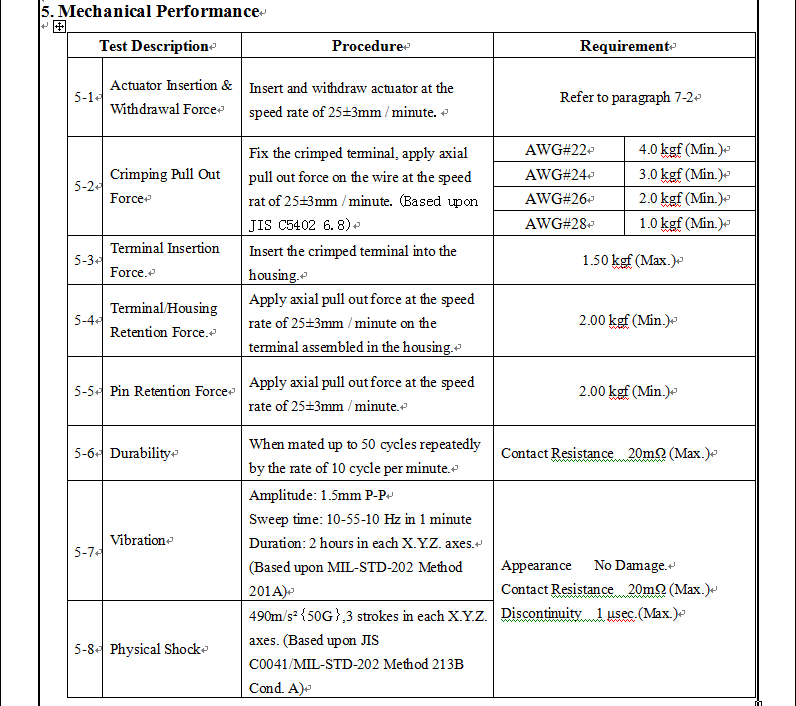

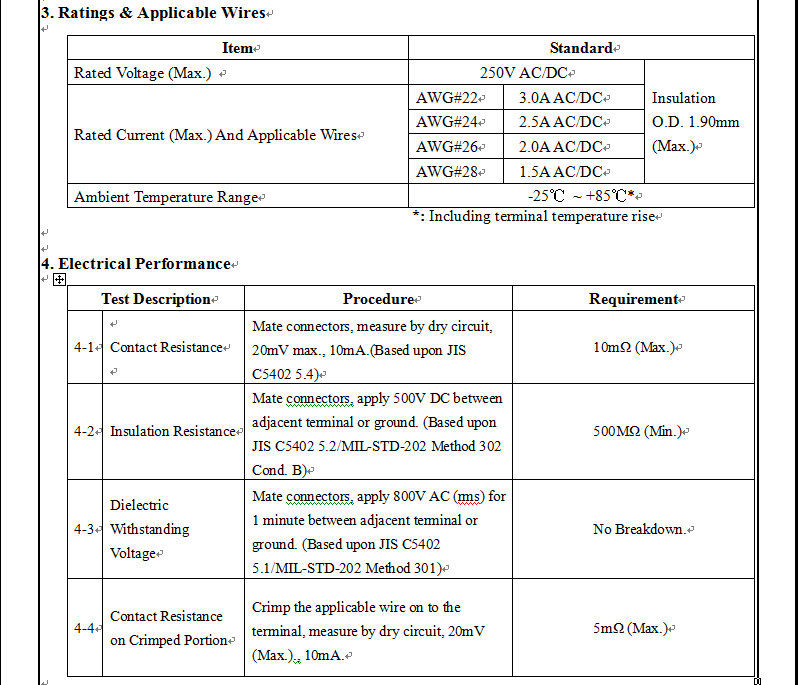

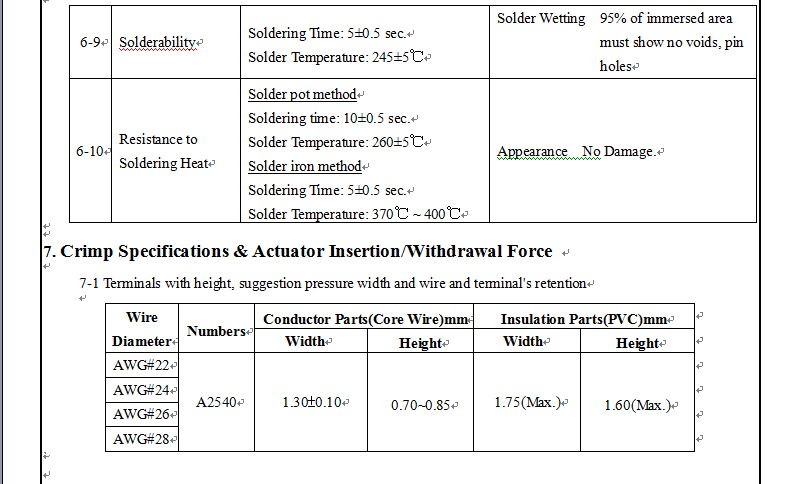

2, Corresponding engineering drawing & test report
Below file is our engineering drawing and testing report for further information. It's sure that it will be a
good reference for you to purchase it.
3, Why to choose us
-
Strict quality control system
-
Prompt delivery
-
Small order acceptable and flexible MOQ
-
Perfect craft procedure
-
OEM or ODM project welcomed

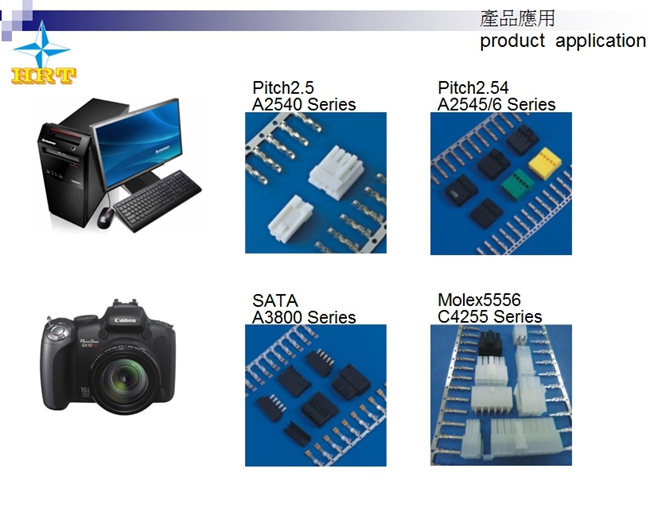

4, Application field of this product
This part is ideal for most of household appliance, computer, telecommunication tools. Our products are accepted by famouse and international company like TPV, LeTV, Emerson, Amphenol Corporation, Skyworth, LuXshare, BYD etc because of its' low defective rate, it have a good performance in real application. All products are certificated by REACH, UL, RoHS, in order to protect the evironment, some parts are halogen free.
5, Our service
We offer multiple payment and delivery terms to save your time & money. It's no doubt that your hurry demands can be met by us. Besides, because we sign agreement with the international express company, the shipping time and price will be attractive to you, so contact us now!
